Customized Agricultural Lawn Mower Gearbox
Customized Agricultural Lawn Mower Gearbox
  • Customized Agricultural Lawn Mower Gearbox

Customized Agricultural Lawn Mower Gearbox

GS4RC lawn mower gearbox is used for lawn mower transmission, our normal standard from 30HP-90HP, we accept custom-made.We are professional in agricultural gearbox field for more than 20 years experience. We can offer you not only gearboxes, but also designning solution.

Share
SPECIFICATIONS FOR 35HP GEARBOX
MaterialHT250 for housingRatio1:1.93
20CrMnTi for gear shaftGear model5
Aluminum for plateTeeth12/23
Main performance parametersNoise82db1 meter
Input speed540 rpm/
bolt torque23-28 NM/

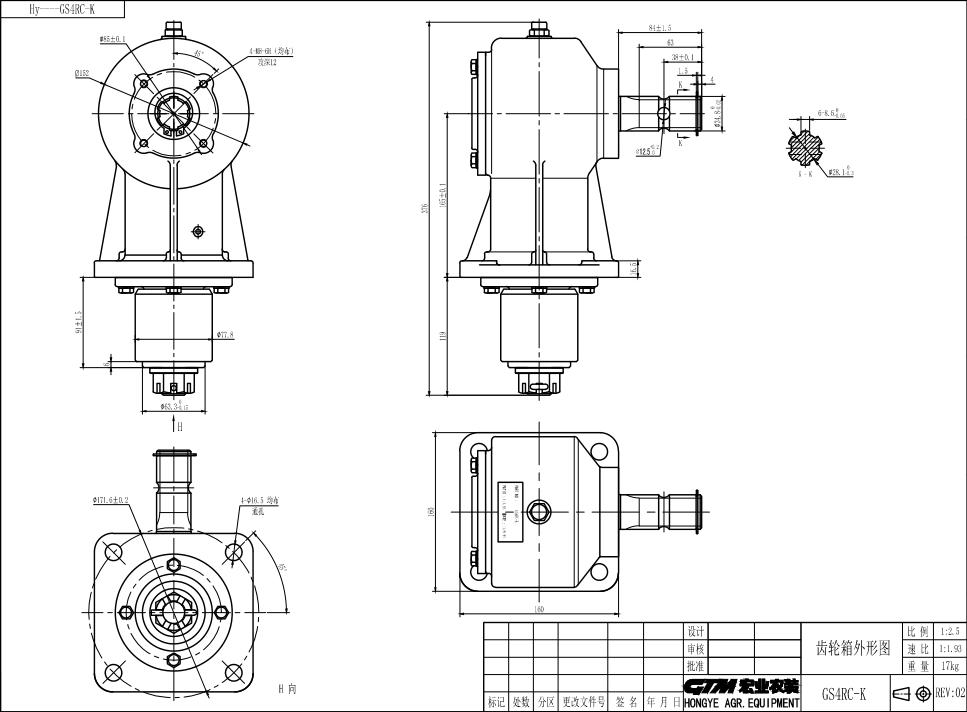

 Machine Drawing:

 Machine Drawing
