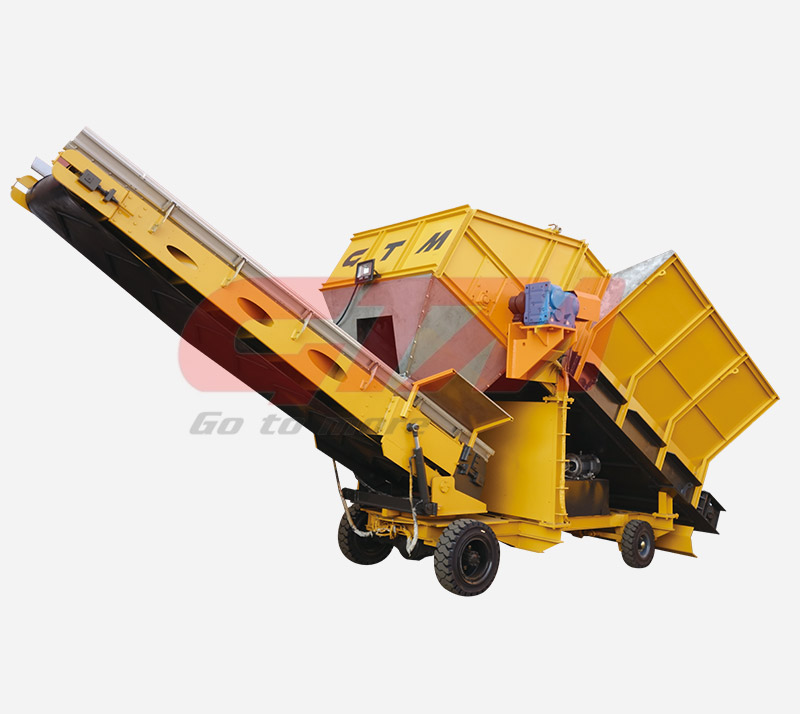

Bunker Filler is used for mixing the straw, chicken manure, gypsum and water, filling the mixed material to Bunker and transferring from Bunker to Bunker.
Parameters
| Items | Unit | GTM-PLJ120 | GTM-PLJ200 | GTM-PLJ500 |
| Voltage | V | 380 | 380 | 380 |
| Frequency | Hz | 50 | 50 | 50 |
| Total power | kW | 28 | 41 | 65 |
| Design efficiency | m³/h | 100-120 | 160-200 | 500 |
| Maximum filling width | m | 4 | 6 | 6 |
| Filling height | m | 4 | 5 | 6 |
| Overall length | m | 9.1 | 10.5 | 16 |
| Overall width | m | 3.5 | 4.2 | 4.5 |
| Overall height | m | 3.8 | 4.5 | 6.5 |
| Loading capacity | t | 2-4 | 6-8 | 8 |
| Total weight | t | ≈7 | ≈11 | ≈15 |
| Material | The parts exposed to compost are SS or hot galvanizing, the other parts are CS (optional galvanized). | |||
